5.1 Basic Modul Burrs (DMENU)
Galerie
•
Profile Construction:
Free selectable sequence including:
•
Front:
End face
Point
Chamfer
Sphere
Ball nose
Enlarged radius
Double radius
•
Middle:
Cylinder
Increasing taper
Downgrade taper
Convex radius
Concav radius
•
Back:
Cylinder
Taper
Radius
•
Standard Fluting:
Cut to center
Section fluting
Two to center
Groove cut
•
Double Cutting:
Optional
•
Periphery:
Optional
•
Chip breaker:
Optional
•
Grinding Direction:
Forward
Backward
Bidirectional
Galerie
•

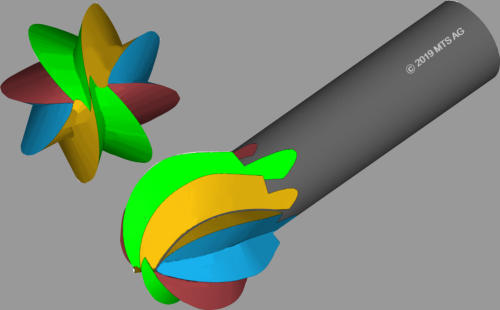

Tool 5030017 „Rose head (Round drills)“
•
Basic Modul
•

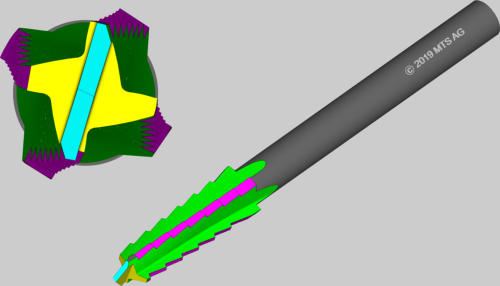

Tool 5040017 „Bone drills“
•
Basic Modul
•

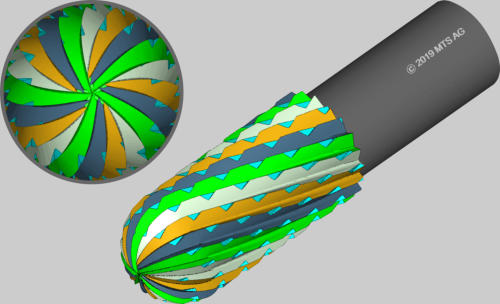

Tool: 5010017 „Tip radius“
•
Basic Modul
•

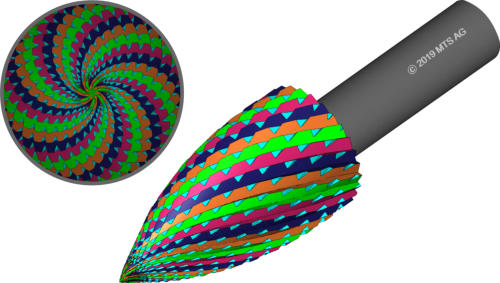

Tool: 5020017
•
Basic Modul
