11.1 Basic Modul Countersink (CMENU)
Galerie
•
Point:
Plane
•
Cutting Edge Combination:
right helix/right cutting
left helix/left cutting
•
Production / Regrinding:
Production by different infeed (several steps)
Regrinding with calculation of removal
length, periphery and rake.
Regrinding, finishing with different wheels
•
Fluting:
Taper flute like end mills
Counter flute with special grinding procedure
•
Chamfer:
Axial/radial relief angle
Rear Section:
Cylindrical grinding
Plane End Face
•
Galerie
•
Tool 11030017
•
Basic Modul
•
Tool 11040017
•
Basic Modul
•

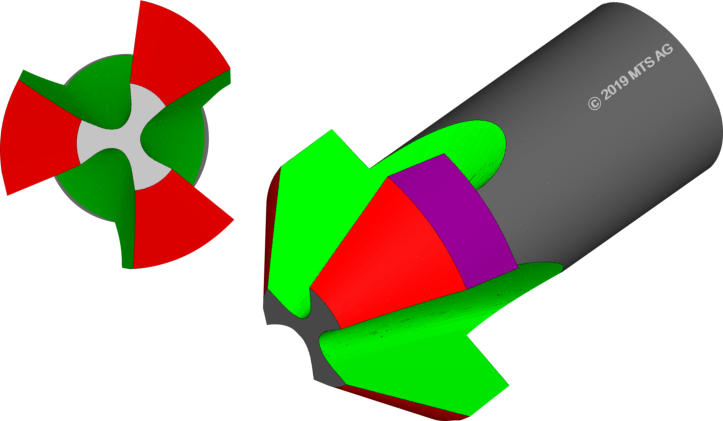

Tool: 11010017 „Countersink with with special grinding procedure“
•
Basic Modul
•
Tool 11020017
•
Basic Modul
