WELCOME “tool-kit PROFESSIONAL ... the software solution for experts
8.1 Basic Modul Profile Tools (SMENU)
Optionen

8.2 Multi Fluting Geometry

8.3 Radial Periphery

6.4 Multi Cutting Geometry

Galerie

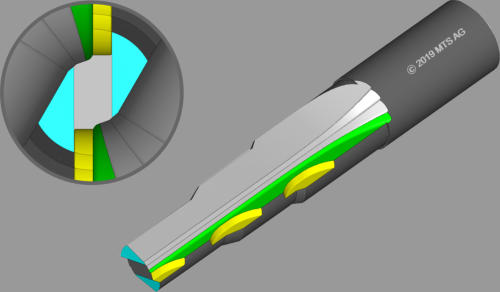

Up to 5 flutings with separate definition but common cutting edge Tool: 8010017

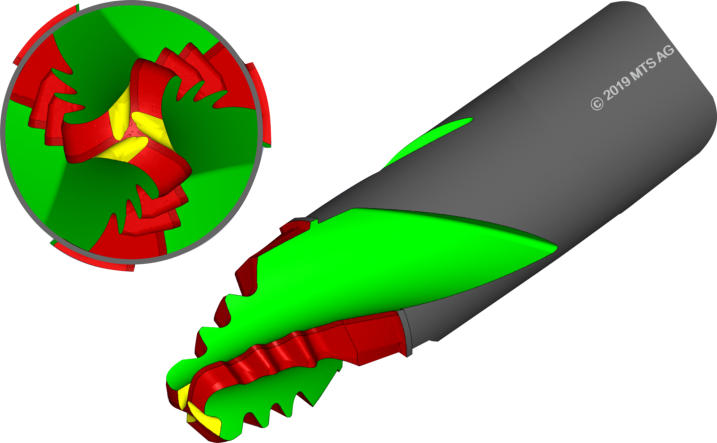

Radial periphery along discretionary sections Special grinding procedure by radius wheel Tool: 8020017

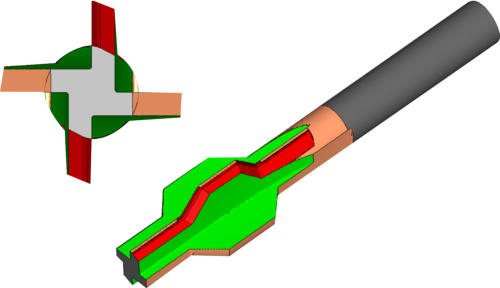

Multi cutting tools with 2 Groups In pairs different cut geometry Tool 8030017

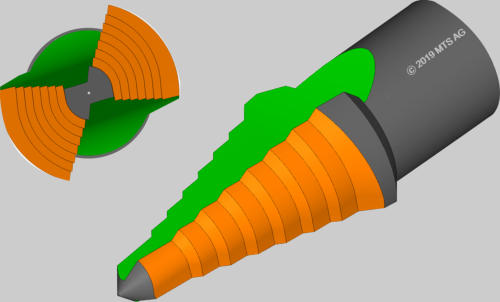

Tool: 8040017 „Plate-equipped tools“ Basic Modul

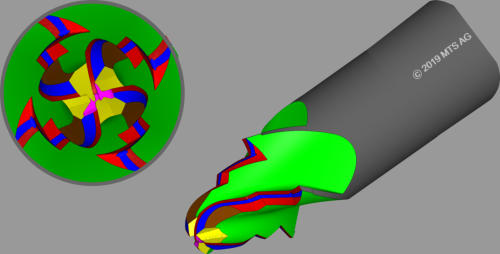

Tool: 8050017 „Sheet metal drill“ Basic Modul
Tool: 8060019 Basic Modul
Tool: Basic Modul
“tool-kit PROFESSIONAL ... the software solution for experts

Copyright © 2001- 2025 MTS AG

Made with MAGIX
Workpiece: Tools with increasing and falling profile Point and Geometry: Milling End Face like 1.1 Drills Point like 6.1 Cutting Edge Combination: right helix/right cut left helix/left cut Production / Regrinding: Production by different infeed (several steps) Regrinding with calculation of removal length, periphery and rake. Regrinding, finishing with different wheels Profile: CAD-system for profile construction Profile Element: Straight line Edge Convex / concave radius Chamfer Increasing / downgrade profile Free selectable sequence of the profile elements Preparation: Separation (cut off) Profile roughing Profile finishing Straight polishing Corresponding to a defined blank profile Main Fluting: Straight fluting Tapered fluting Spade drill fluting Periphery: Linear relief: 1st/ 2nd /3rd relief angle Radial relief: 1st relief angle Cylindrical relief Raised land fluting Multi facet raised land fluting Receding Profile: Extension of profile including receding sections Extension: Reading DXF-Format Reading an external created DXF-file Konverting into MTS-file-format autom. sorted elements autom. corrected sequence autom. corrected orientation Selecting the particular layer DXF-Standard: AutoCAD Version 12 DXF-identification-code „AC1008“
