22.1 Basic Modul tool-kit 3D-view 2.0

Galerie

• 22030017 • Basic Modul tool-kit 3D-view 2.0

• 22010017 • Basic Modul tool-kit 3D-view 2.0

• 22020017 • Basic Modul tool-kit 3D-view 2.0

“tool-kit PROFESSIONAL ... the software solution for experts”

Copyright © 2001- 2025 MTS AG

Made with MAGIX

• Specification „22.1 Basic modul tool-kit 3D-view 2.0“ • Specifícation

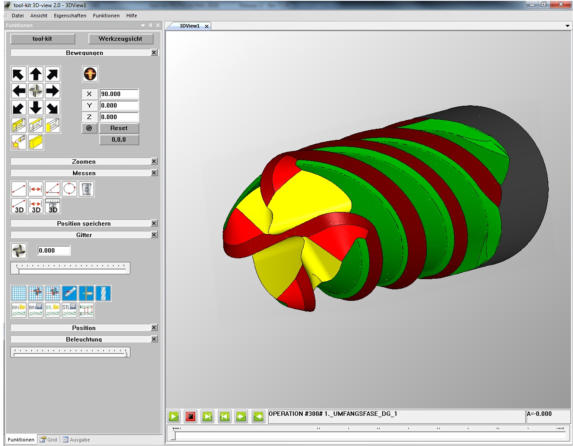

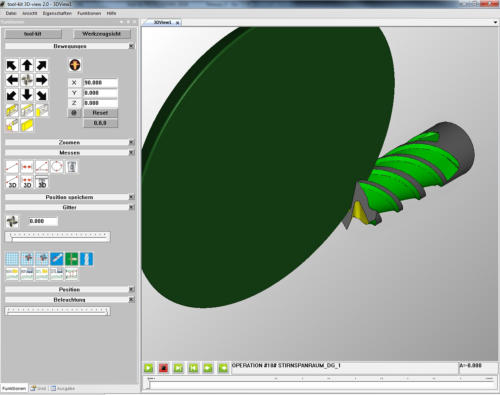

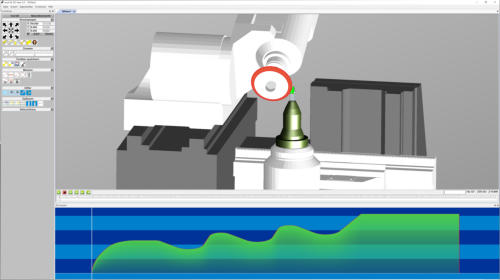

• Tool-simulation in 3D • Integrated call of 3D-simulation from all moduls including 3D simulation view • Positioning of the workpiece in three Rotary axes (3D view). • Save 3D views. • 2D grid and 2D • measurement (distance, angle, radius). • 3D measurement (points, distance). • Section plane display • Snap2Point feature. • Refining function for cutouts. • Transparency view- Adding operations (not everything new count). • Loading STL blanks. • Save as STL file. • Display of STEP files

MODUL tool-kit 3D-view 2.0

Open with Google Maps

CONTACT

Email: Phone:

info-mts(at)vollmer-group.com +49 7351 571 8141 +49 1605 426 017

ADRESS VOLLMER WERKE Maschinenfabrik GmbH MTS Innovationszentrum Freiburg (FRIZ) Georges-Köhler-Allee 302 79110 Freiburg

VORLAGE

Galerie

22.1 Basic Modul tool-kit 3D-view 2.0

Galerie

• Tool-simulation in 3D • Integrated call of 3D-simulation from all moduls including 3D simulation view Positioning of the workpiece in three • Rotary axes (3D view). • Save 3D views. • 2D grid and 2D measurement (distance, angle, radius). • 3D measurement (points, distance) • Section plane displa • Snap2Point feature • Refining function for cutouts • Transparency view • Adding operations (not everything new count) • Loading STL blanks • Save as STL file • Display of STEP files
